3. References

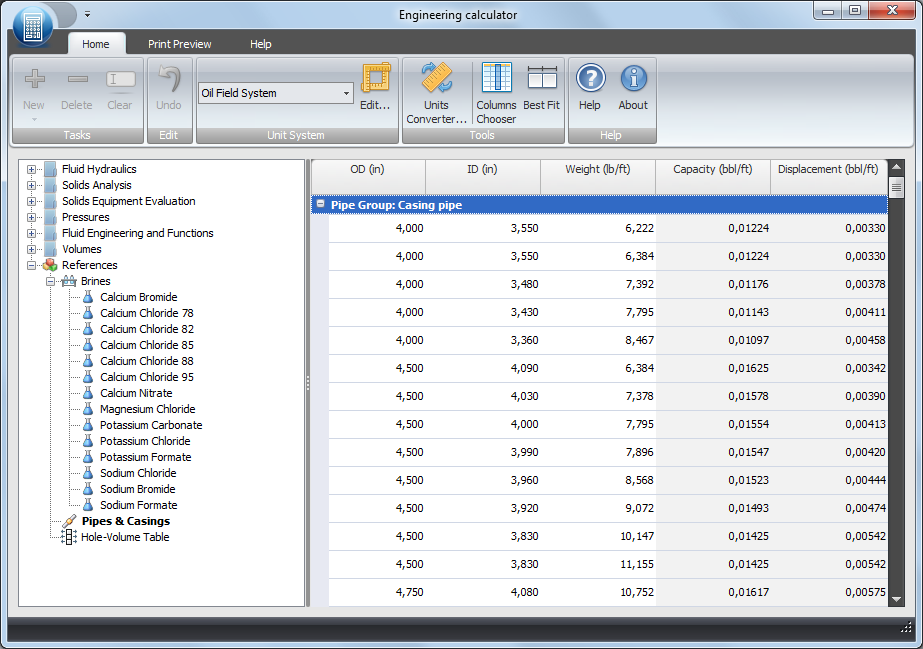

References are only permitted to be read in Engineering Calculator. To call reference to display make mouse double click on its node:

Click on Subreferences Group Node to expand Items List

Double Click on References Node to Display Its Content

Reference database includes pipes and casings data, brines and hole capacity data table. Pipes data devision contains casing pipes, drill pipes, drill collars, heavy wegth drill pipes, risers and coil tubings.

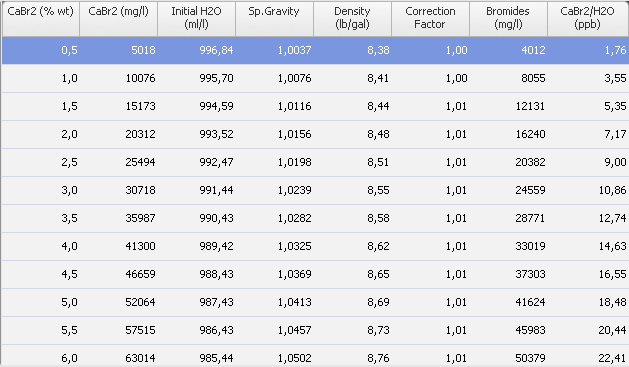

Brine tables contain information on the characteristics of the salt according to its percent weight in the solution.

Salt type and it's Percent weight

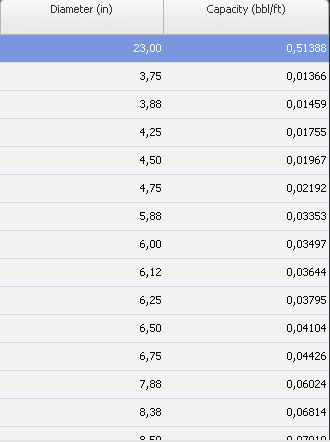

Hole capacity is based on the most commonly used hole sizes.
