2.3. Solids Analysis
 |
2.3.4. Formate Mud |

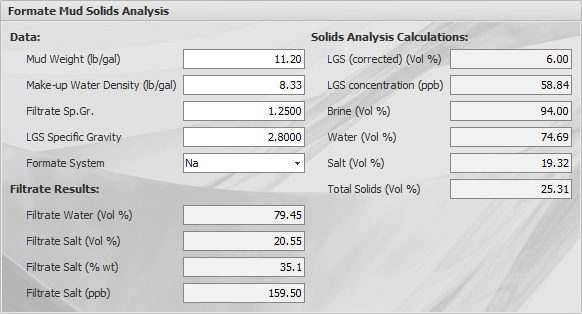

Task is designed to calculate mud solids control parameters in case of formate mud.
| Input Values | ||
 |
Mud Weight | Density of mud |
|
Make-up Water Density | Make-up Water Density |
|
Filtrate Sp.Gr. | Concentration of Chlorides |
|
LGS Specific Gravity | Specific gravity of low gravity solids |
 |
Formate System | K; Na |
| Results | ||
 |
Filtrate Water, Vol% | Volume concentration of water in liquid phase of the mud |
|
Filtrate Salt, Vol% | Volume concentration of salt in liquid phase of the mud |
|
Filtrate Salt, % wt | Percentage of weight of salt in liquid phase of the mud |
|
Filtrate Salt | Concentration of salt in liquid phase of the mud |
|
LGS (corrected), Vol% | Volume concentration of low gravity solids (without salt) |
|
LGS concentration | Concentration of low gravity solids |
|
Brine, Vol% | Volume concentration of brine in the mud |
|
Water, Vol% | Volume concentration of water in the mud |
|
Salt, Vol% | Volume concentration of salt in the mud |
|
Total Solids, Vol% | Volume concentration of solids (including Salt) |
