2.3. Solids Analysis
 |

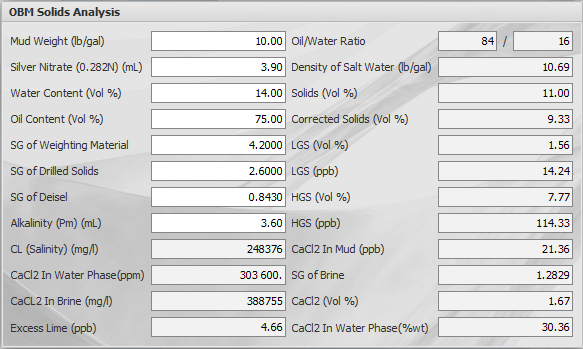

2.3.1. Oil Base Mud |
Task is designed to calculate mud solids control parameters in case of oil base mud.
| Input Values | ||
 |
Mud Weight | Density of mud |
|
Silver Nitrate (0.282N) | Silver nitrate used for titration |
|
Water Content | Water content in the mud |
|
Oil Content | Oil content in the mud |
|
SG of Weighting Material | Specific gravity of weighting material |
|
SG of Drilled Solids | Specific gravity of Drilled Solids |
|
SG of Diesel | Specific gravity of Diesel |
|
Alkalinity (Pm) | Phenolphthalein alkalinity of the mud filtrate |
| Results | ||
 |
CL (Salinity) | Water phase salinity in mud |
|
CaCl2 In Water Phase | Percentage of weight of CaCl2 in water phase |
|
CaCL2 In Brine | Concentration of CaCl2 in water phase |
|
Excess Lime | Excess Lime concentration |
|
Oil Ratio | Percent oil in the volume of liquid in the mud |
|
Water Ratio | Percent water in the volume of liquid in the mud |
|
Density of Salt Water | Density of salt water phase in the mud |
|
Solids | Total solids content in the mud |
|
Corrected Solids | Solids content in the mud without CaCl2 |
|
LGS | Concentration of low gravity solids in the mud |
|
LGS, Vol% | Volume concentration of low gravity solids in the mud |
|
HGS | Concentration of high gravity solids in the mud |
|
HGS, Vol% | Volume concentration of high gravity solids in the mud |
|
CaCl2 In Mud | Concentration of CaCl2 in the mud |
|
SG of Brine | Specific gravity of salt water |
|
ÑaCl2, Vol% | Volume concentration of CaCl2 in the mud |
|
CaCl2 In Water Phase | Percentage of weight of CaCl2 in water phase |
