2.7. Volumes

---

2.7.5. Rectangular Tank

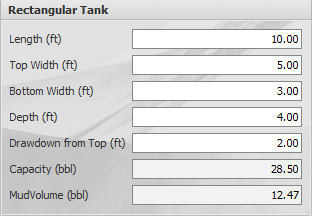

This task is used to calculate rectangular tank capacity and volume of mud in the tank.

Input Values
	Length	Tank length
	Top Width	Tank width at top
	Bottom Width	Tank width on bottom
	Depth	Tank depth (height)
	Drawdown from top	The distance from tank top till fluid surface
Results
	Capacity	Tank capacity
	Mud Volume	Volume of mud in tank
