2.6. Fluid Engineering and Functions
 |

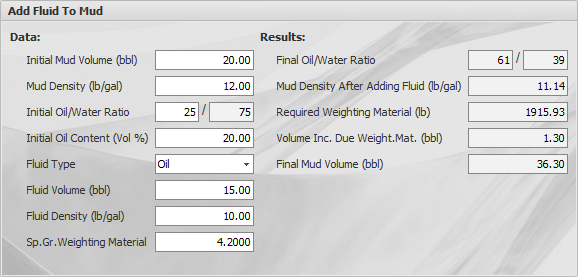

2.6.8. Add Known Volume to Oil Mud |
Task is used to perform calculations of final parameters values for adding fluid to oil mud.
| Input Values | ||
 |
Initial Mud Volume | Mud volume before operation |
|
Mud Density | The density of mud |
|
Initial Oil / Water Ratio | Oil / Water Ration before operation |
|
Initial Oil Content, Vol% | Oil content in the mud before the operation |
|
Fluid Type | Type of fluid to be added (Oil or Water / Brine) |
|
Fluid Volume | The volume of fluid to be added |
|
Fluid Density | The density of fluid to be added |
|
Sp.Gr. Weighting Material | Specific gravity of weighting material |
| Results | ||
 |
Final Oil / Water Ratio | Oil / Water Ration after operation |
|
Mud Density After Adding Fluid | The density of mud after operation |
|
Required Weighting Material | The required weight of weighting material |
|
Volume Inc. Due Weight. Mat | The increase of mud volume due to adding of weighting material |
|
Final Mud Volume | Mud volume after operation |
