2.6. Fluid Engineering and Functions

---

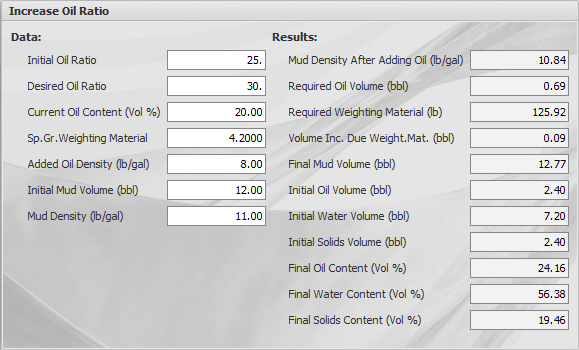

2.6.6. Increase Oil Ratio

Task is used to perform calculations related to mud oil ratio increasing.

Input Values
	Initial Oil Ratio	Oil Ratio before the operation
	Desired Oil Ratio	Oil Ratio after the operation
	Current Oil Content, Vol%	Oil content in the mud before the operation
	Sp.Gr.Weighting Material	Specific gravity of weighting material
	Added Oil Density	The density of the oil that is planned to be added to increase oil ratio
	Initial Mud Volume	Mud volume before operation
	Mud Density	The density of mud
Results
	Mud Density After Adding Oil	The density of mud after the oil was added
	Required Oil Volume	Required volume of oil
	Required Weighting Material	The required weight of weighting material
	Volume Inc. Due Weight. Mat	The increase of mud volume due to adding of weighting material
	Final Mud Volume	Mud volume after operation
	Initial Oil Volume	The volume of oil in the mud before operation
	Initial Water Volume	The volume of water in the mud before operation
	Initial Solids Volume	The volume of solids in the mud before operation
	Final Oil Content, Vol%	Oil content in the mud after the operation
	Final Water Content, Vol%	Water content in the mud after the operation
	Final Solids Content, Vol%	Solids content in the mud after the operation
